The Nitty-Gritty
2. Delving into the Mechanics
Alright, let’s peek under the hood a little bit. How do these sensors actually sense? Most force and pressure sensors rely on something called a strain gauge. Picture a tiny, super-sensitive resistor glued to a flexible material. When force or pressure is applied, the material bends, stretching or compressing the strain gauge. This changes its electrical resistance.
The sensor then measures this change in resistance. A little electronic wizardry converts that tiny change into a readable signal (like volts or milliamps) that you can then use to determine the force or pressure applied. It’s a pretty elegant system, really. Think of it as a tiny, incredibly precise weighing scale for very small pushes and pulls.

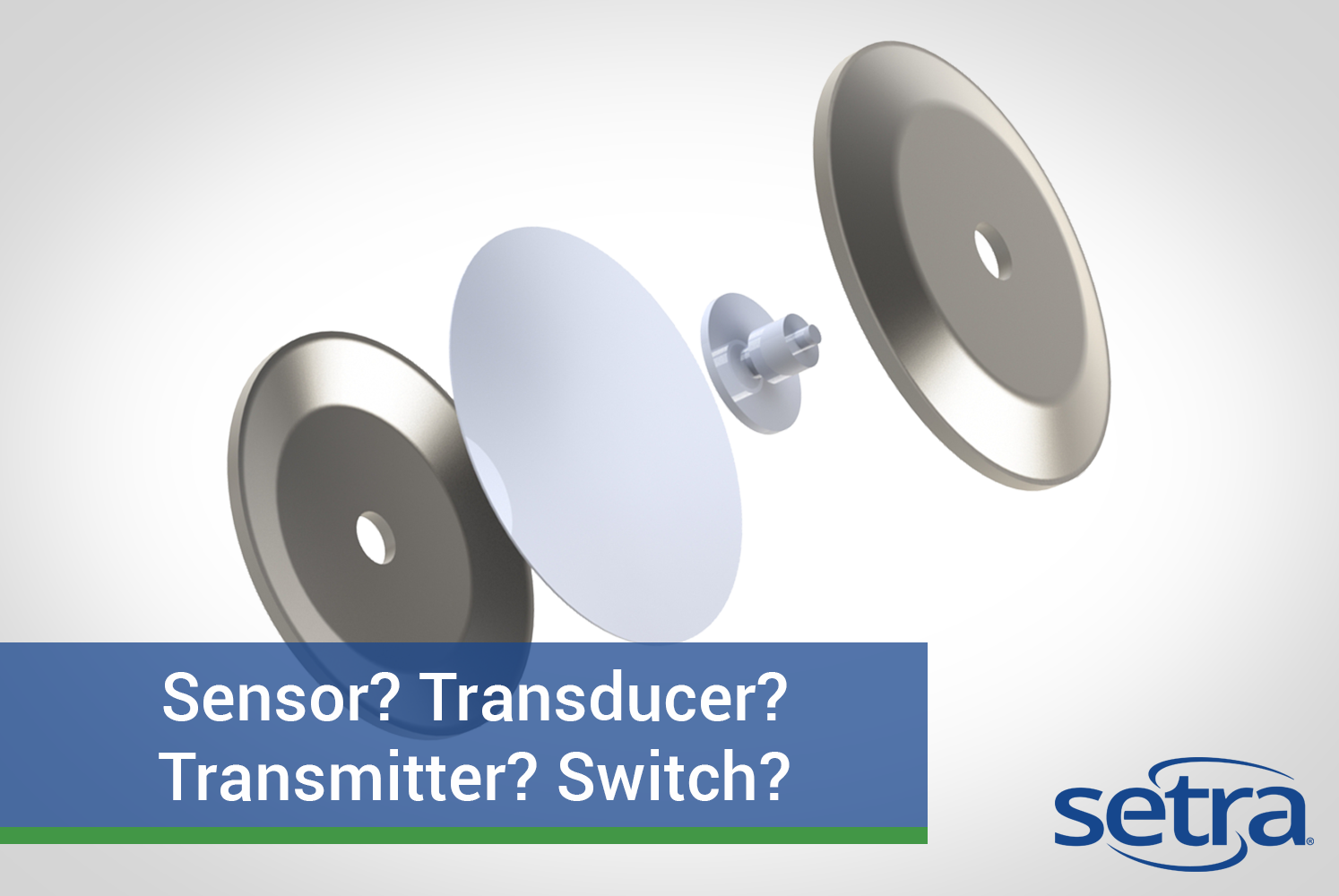

Pressure sensors often involve a diaphragm or membrane that deflects when pressure is applied. This deflection can be measured using different techniques, including strain gauges, capacitive sensors (measuring the change in capacitance), or piezoelectric sensors (generating a voltage when deformed).
Force sensors, on the other hand, typically measure the force directly applied to a sensing element, which again could be a strain gauge, a piezoelectric element, or even an optical sensor. The key is that the sensor is designed to capture the total force applied to it, not the pressure distributed across an area. It’s like the difference between weighing a whole apple and measuring the pressure of a single apple slice.
